BCC2000Plus Construction Time Lapse Bundle
Professional Made Easy / Trio Bundle Pack + Camera Extender Kit
CAMERA FIRMWARE UPDATE
Construction Bundle with Solar
Power Kit
A Redesigned BCC2000
We have bundled our bestselling BCC2000 with the Camera Extender Kit (AFB1000), as a result, creating our easiest and most efficient time lapse solution yet. Engineered to withstand the unpredictable construction environment, the Extender Kit’s 32ft (10m) long cable provides instant access to your camera through your laptop or tablet(Windows 64-bit OS).
BCC2000 vs. BCC2000+
BCC2000
BCC2000Plus
| Features | Option 1 | Option 2 |
|---|---|---|
| Brinno Command Center (Windows 64-bit OS) | X | ✓ |
| Ladderfree Access to Camera | X | ✓ |
| Simultaneous Record & Download | X | ✓ |
| Camera Extender Kit (AFB1000) | X | ✓ |
| Time Lapse Camera (TLC2000) | ✓ | ✓ |
| Power Housing (ATH2000) | ✓ | ✓ |
| Industrial-grade Clamp (ACC1000) | ✓ | ✓ |
Ground Control
Have full control of your camera settings while keeping your feet firmly on the ground. The BCC2000Plus makes using a Brinno camera effortless and efficient. Complete all common camera functions instantly without needing to fumble with SD cards or a camera LCD screen.

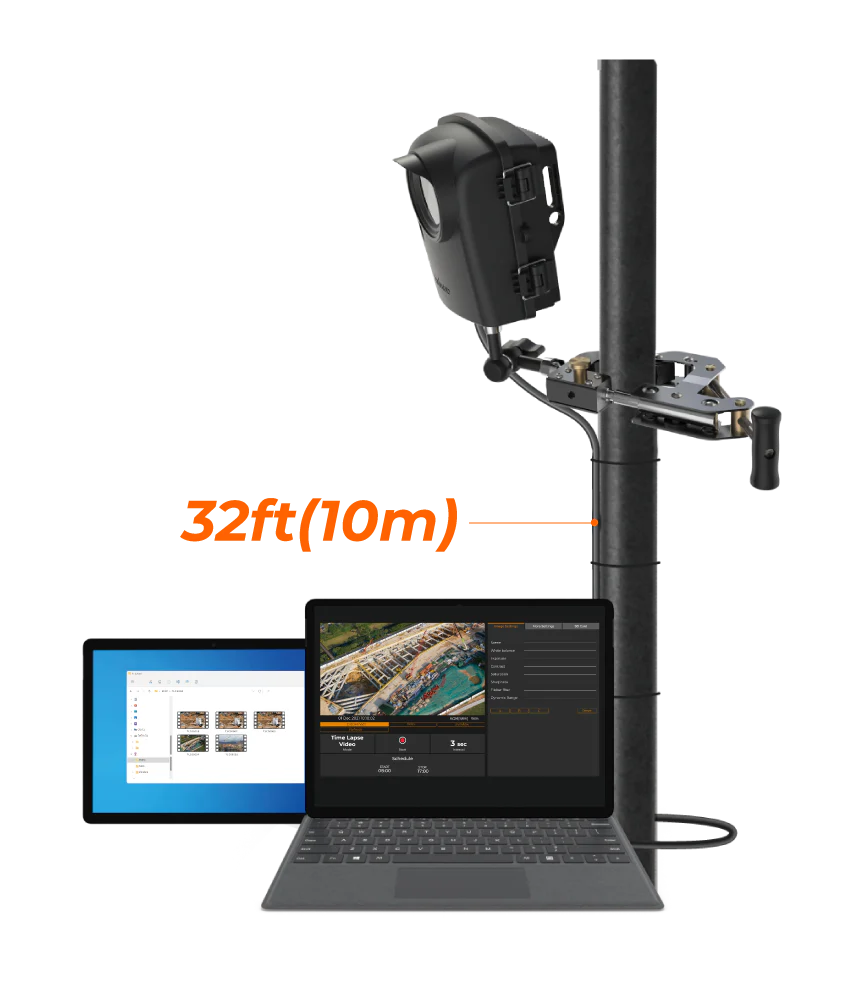

Ladderfree Access
Jobsite safety is essential to any construction project. With the BCC2000Plus, experience truly ladderfree access to your camera. The Camera Extender Kit (AFB1000)eliminates the need to climb-up to access your camera. Effortlessly connect to your laptop or tablet (Windows 64-bit OS) using the 32ft cable and get instant access to your camera to download files, adjust capture interval, image settings, schedule, start and stop recording. You can even check-up on your camera battery life and remaining SD card memory.

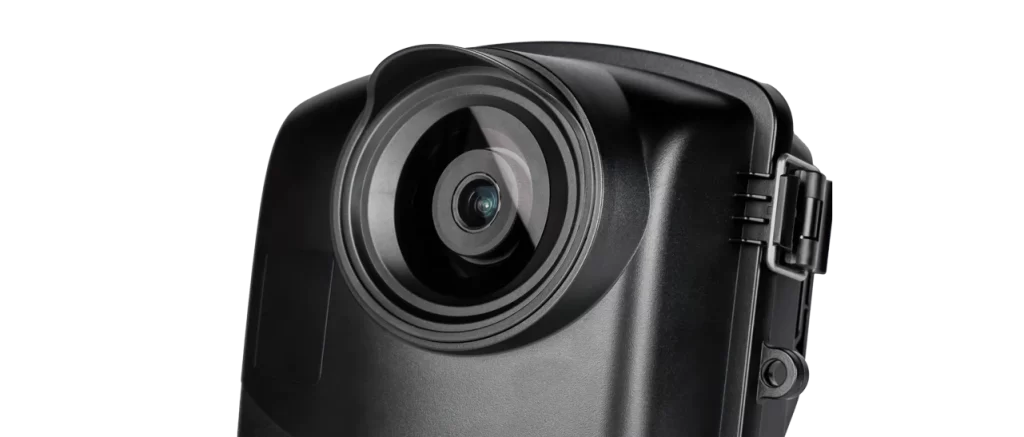

An Upgraded Time Lapse Experience
Freedom to check your camera as needed. Even beginner timelapsers can be at ease knowing they can easily check their filming status as a part of their regular rounds. No need to climb to great heights to check-in with your camera.
Features
IPX5 Power Housing
Unlimited Power
Simultaneous Record & Download
Laptop/Tablet Control (Windows 64-bit OS)
32ft Ruggedized Cable
Industrial-grade Clamp
Unlimited Power
Coupled with the Power Housing’s (ATH2000) worry-free battery life and the Extender
Kit’s ability to plug into external power, the BCC2000 Plus is the best solution for long
term filming.
Ni-MH batteries, and Zinc-Carbon batteries will affect camera battery duration therefore DO NOT
recommend them.

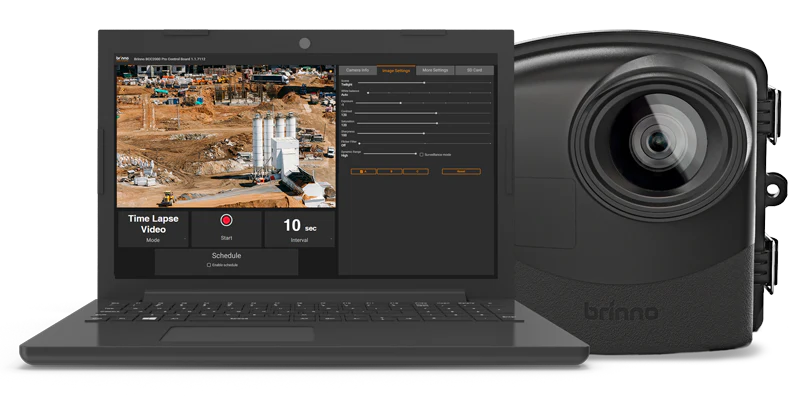

Laptop/Tablet Control
Command Center (Windows 64-bit OS). Preview camera frame, change settings, check
battery and SD card status, and more!
Simultaneous Record &
Download
efficiently download time lapse files without disrupting your filming schedule.
32ft Ruggedized Cable
proof cable. Our cable has UV coating and special waterproofing plug and seal to ensure
safe long-term outdoor use.

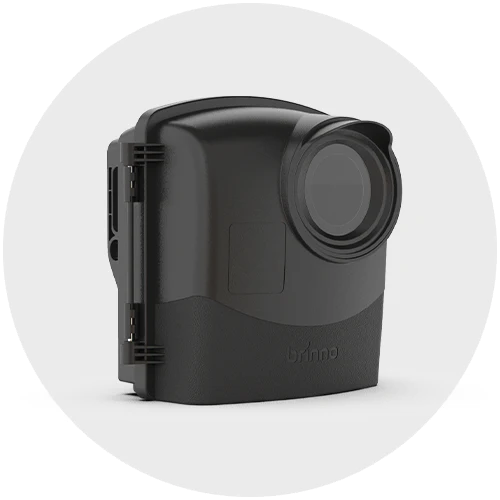

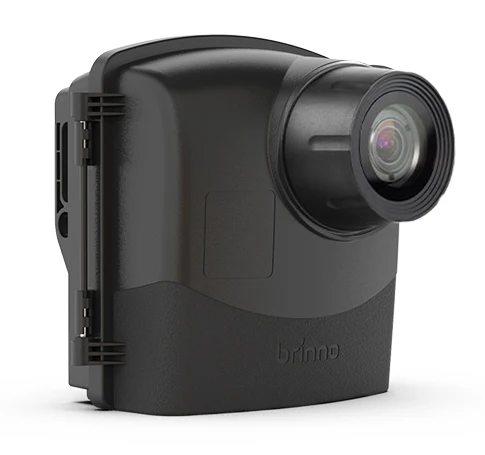

IPX5 Power Housing
possible. In addition to providing four-season protection from the elements, the housing’s
16AA battery slot will power your camera for up to 250 days* using akaline batteries with
one hr capture interval.
Extensive usage of the command center may result in a significant reduction in battery
life. The 250-days data come from BCC2000 without connecting to command center.

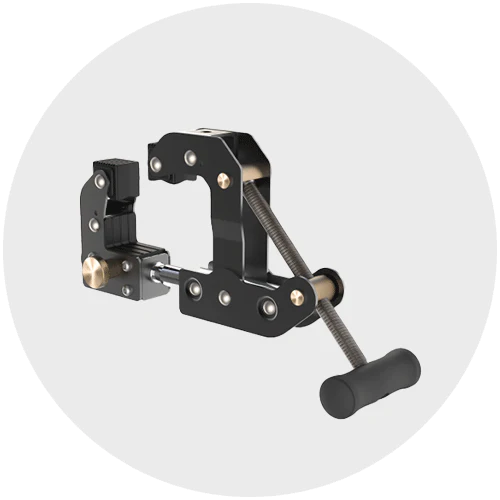

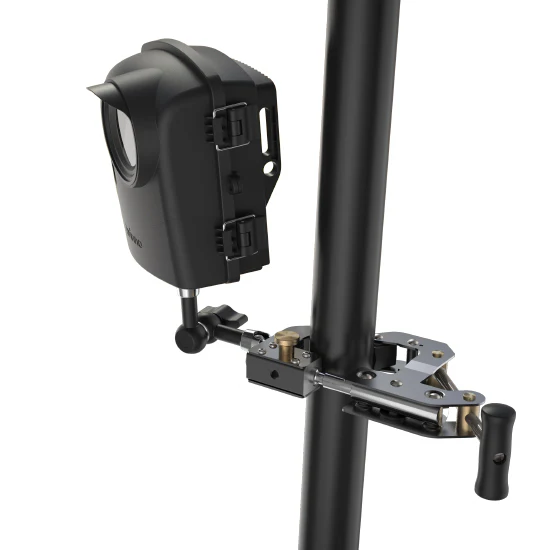

Industrial-grade Clamp
Designed to meet the extreme durability requirements of filming in construction and industrial environments,
the Clamp Mount (ACC1000) can be securely installed onto a wide variety of surfaces.
Unique multi-point mounting design enables you to adjust the clamp, as needed, to get your perfect view angle.

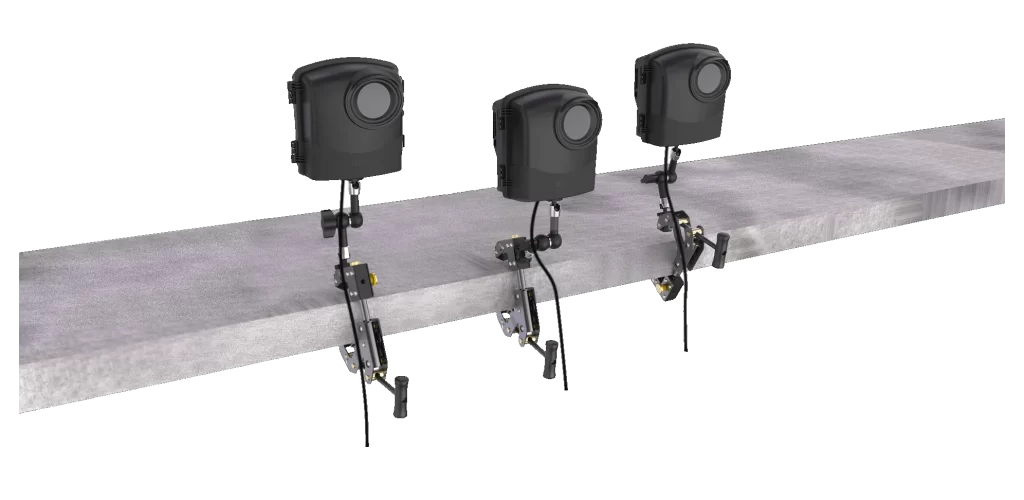

Camera Mounting Positions
Video Feature
Building the Marvel Universe on Time Lapse
Jacinta Leong:
Jacinta Leong is a Production Designer and Art Director who has been working in the film industry for over 28 years. Her impressive resume includes many Hollywood films such as The Matrix, Star Wars - Attack of the Clones and Revenge of the Sith, X-Men Origins: Wolverine, and most recently Marvel’s Shang-Chi and the Legend of the Ten Rings. As an Art Director on Shang-Chi, Jacinta oversaw the creation of set designs that combined traditional Chinese architecture and design with fantastical elements from the Marvel Universe.

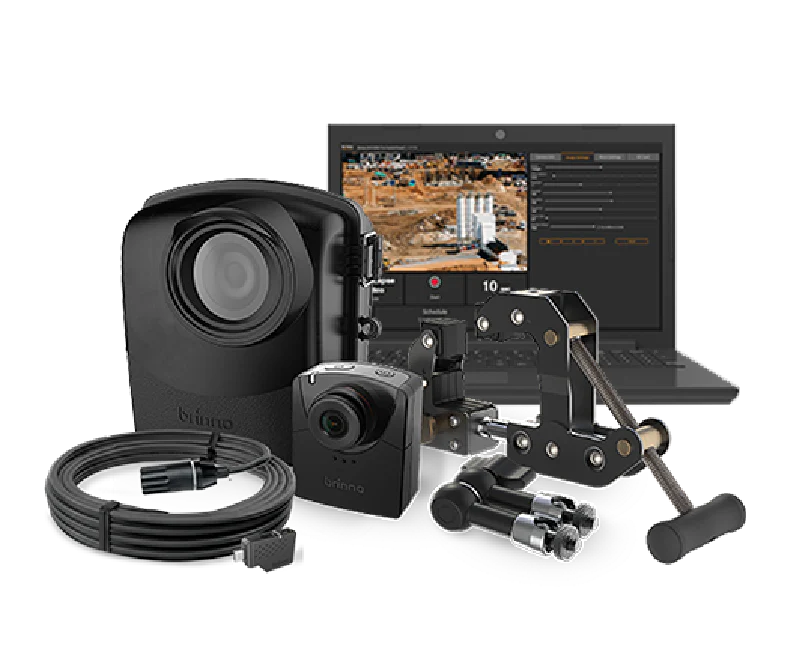

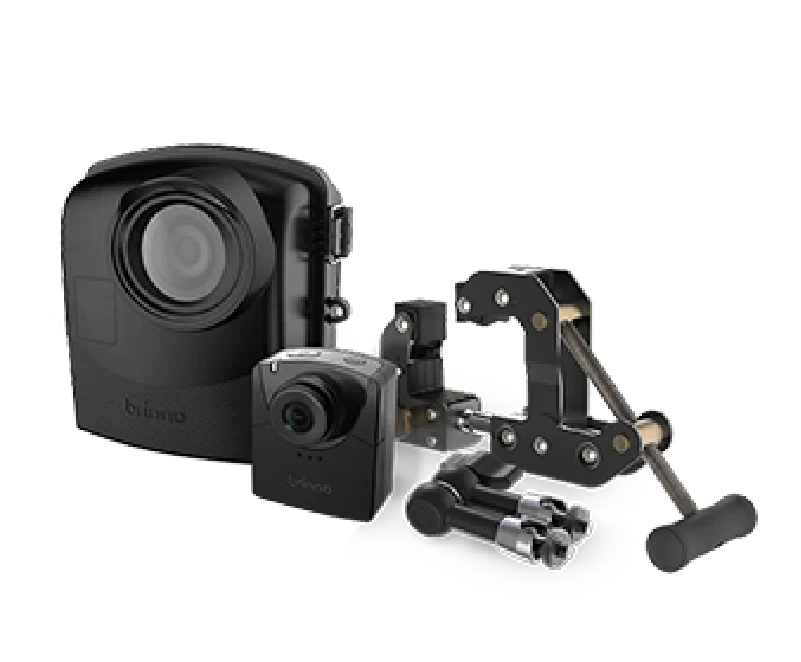

In the Box
Clamp Mount Kit
Time Lapse Camera
Construction Power Housing
Camera Extender Kit

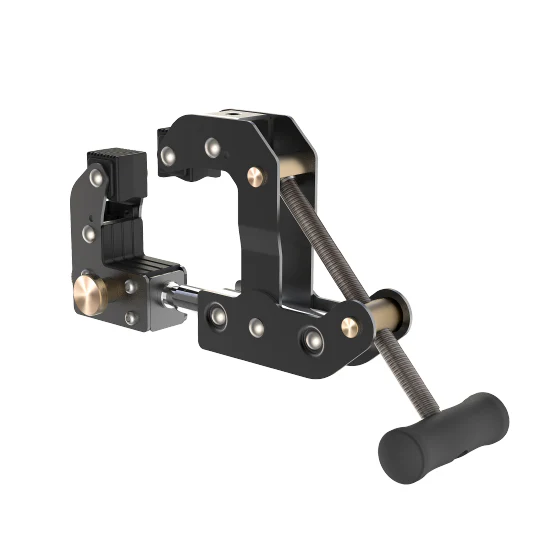

| Model NO. | ACC1000 |
|---|---|
| Contents | Camera Clamp; Magic Arm |
| Camera Mount Screw | ¼” |

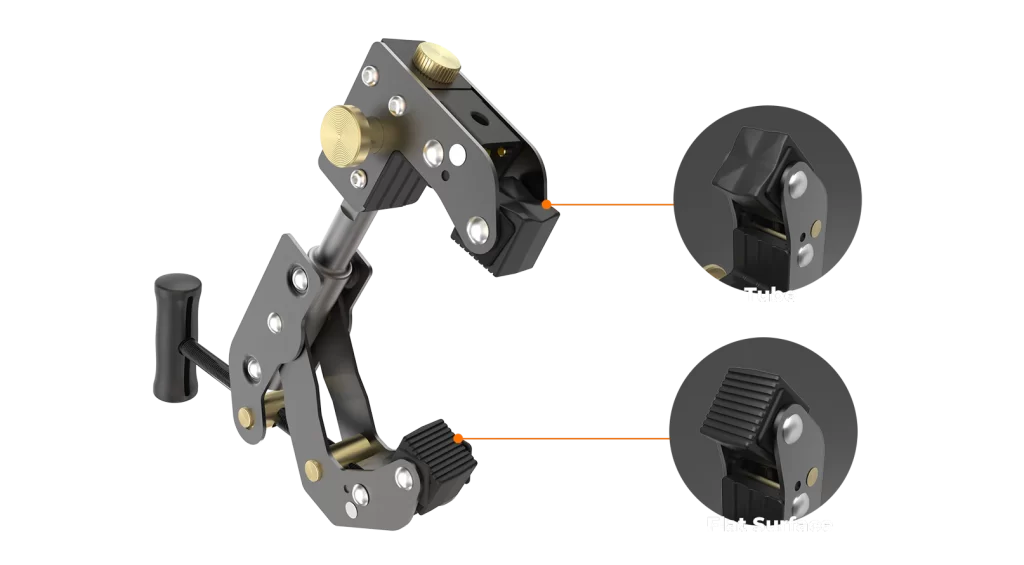

| Clamping Range |
Tube: 0.4- 3.5 in (10 – 90 mm) Flat surface: 0.04- 3.5 in (1 -90 mm) |
| Magic Arm Load Capacity | 6.6 lb (3 KG) |
| Clamp Load Capacity | 110 lb (50 KG) (without extension pole) |
| Size (L×W×H) |
Folded: 8.2× 3.7× 1.5 in (209× 94× 39 mm) Extended: 6.9× 7.1× 2.4 in (176× 180× 60 mm) |
| Weight | 26.5 oz (750 g) (included magic arm) |
| Materials |
Clamp: Stainless, aluminum Magic Arm: Stainless, metal, aluminum |

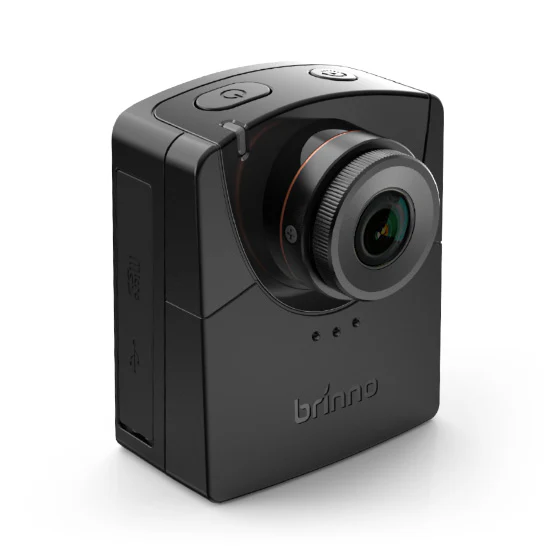

| Model NO. | TLC2000 |
|---|---|
| Resolution | 1080P |
| Aperture | F2.0 |
| Focal Length | 2.8 mm (Actual), 19 mm (35mm equivalent) |
| Field of View | 118° |
| Capture Mode | Time Lapse, Step Video, Stop Motion, Still Photo |
| LCD Screen | 2″ TFT LCD |
| Storage | microSD/ microSDHC/ microSDXC (up to 128 GB, recommend a minimum of Class 10) |
| Power Source | 2 AA Batteries, DC IN 5V 1A (USB-C connector) |
| Operating Temperature | 32°F ~ 113°F (0°C ~ 45°C) |
| Size (WxHxD) | 2.4 x 2.8 x 1.7 in (60 x 70.6 x 42.4 mm) |
| Weight | 3.0 oz (87.5 g) (without battery) |
| Model NO. | ATH2000 |
|---|---|
| IP-Rating | IPX5 (weather resistant) |
| Compatible Cameras | TLC200, TLC200Pro, TLC120, TLC130, TLC2000, TLC2020 (Use with included battery cover adapter) |
| Battery Slot | Room for up to 16 add’l AA batteries Micro USB connector (output 5V 2A) |
| Exchangeable Lens Covers | Kit lens cover Extension lens cover (for Brinno BCS lens) |
| Size | 6.6 x 6.1 x 4.5 in (167x156x115.5 mm) |
| Weight | 14 oz (393 g) |
| In the Box | Construction power housing; Camera mounting adapter; Battery slot; Extension lens cover; Desiccant; Screwdriver; USB-C Adapter; Strap*2 |
| Note | Not applicable to BCS 18-55 lens if using ASP-1000P solar power kit. |
| Model NO. | AFB1000 |
|---|---|
| Dongle Interface |
Output: USB-C (to camera) Input: USB-C (for USB-C cable) micro USB (for ATH2000 power supplier) |
| USB-C Cable |
■ USB-A Male to USB-C Male ■ Weatherproofing Cap and Seal ■ UV Coating ■ 32ft (10m) ■ Supports USB 2.0 high speed data transferring at up to 200mbps |
| Size (WxHxD) |
Multi-task dongle ACB1000 – 1.85 x 1.09 x 0.35 in (47.1 x 27.9 x 9 mm) USB-C cable – 32ft (10m) Mounting Adapter – 4.9 x 2.7 x 0.6 in (126 x 69 x 14.7 mm) |
| Weight |
Multi-task dongle ACB1000 – 0.33 oz (9.3 g) USB-C cable – 15.2 oz (450 g) Mounting Adapter – 1.14 oz (32.5 g) |
